This is a real-time, flexible web application for event scoring statistics

© 2025 Scoreboard

Project Release Page

• My home page:
  • https://zihaowang.cn/zh/post/scoreboard/
  • https://zihao.viston.wang/zh/post/scoreboard/
• GitHub:
  • https://github.com/ZihaoVistonWang/scoreboard

Preview

• 🧮 Scoreboard

Demonstration

• Clicking on a username in the points list that does not belong to you will open the transfer page.

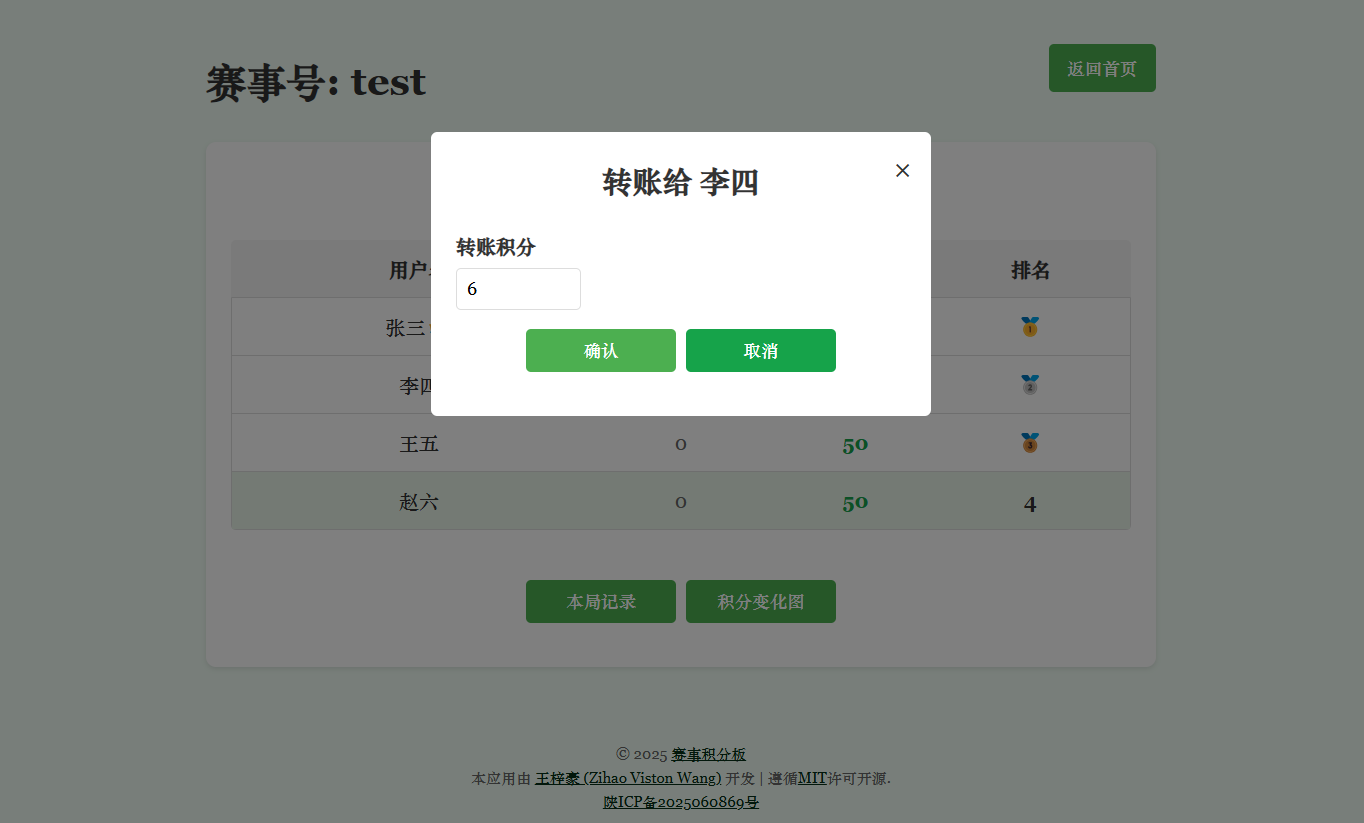

  Figure 1. Transfer page

• Clicking the “本局记录” button will allow you to view the score transaction details for this round.

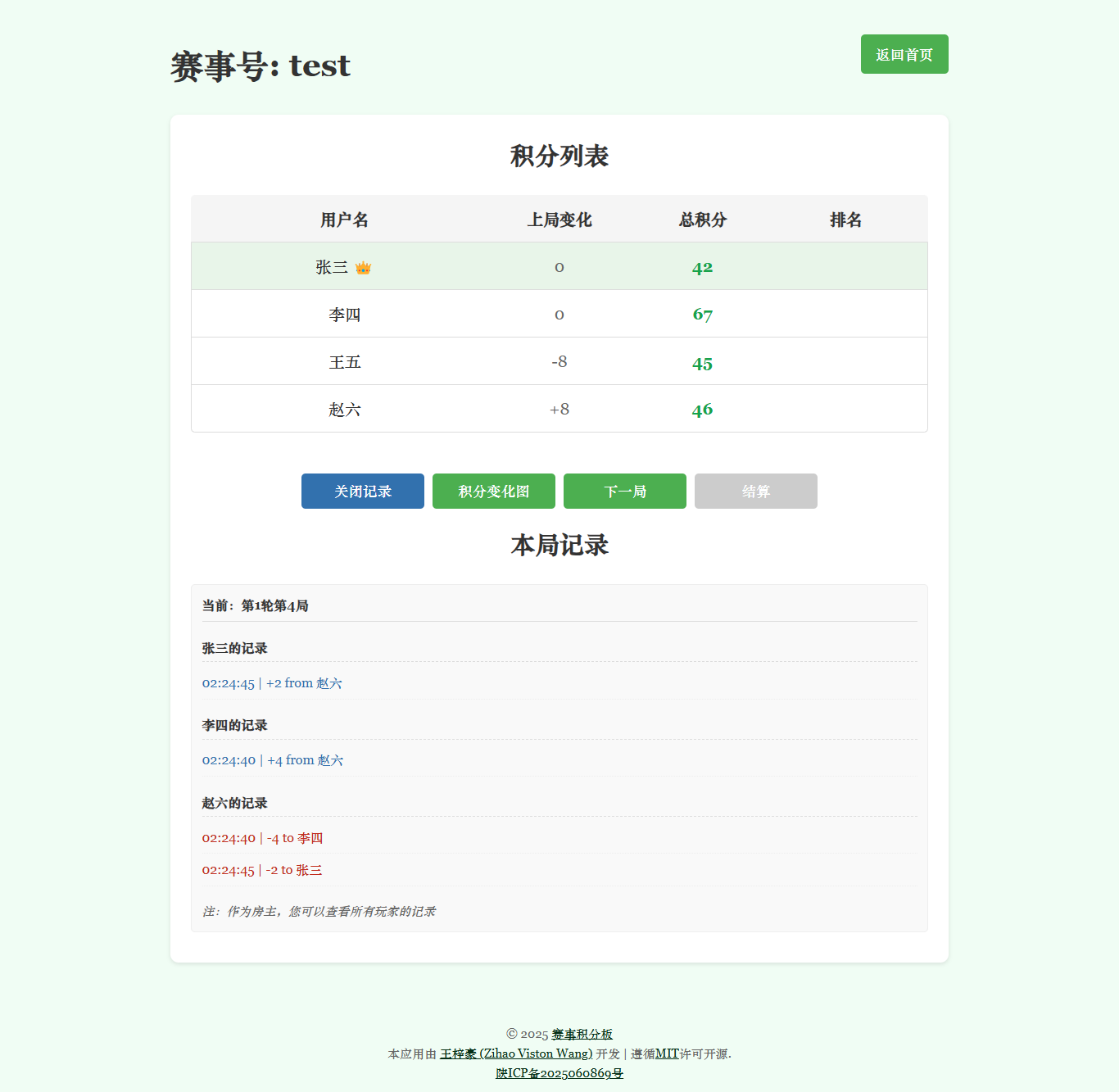

  Figure 2. Score List and Current Round Record

• Clicking the “积分变化图” button will allow you to view the complete score variation chart for this competition room.

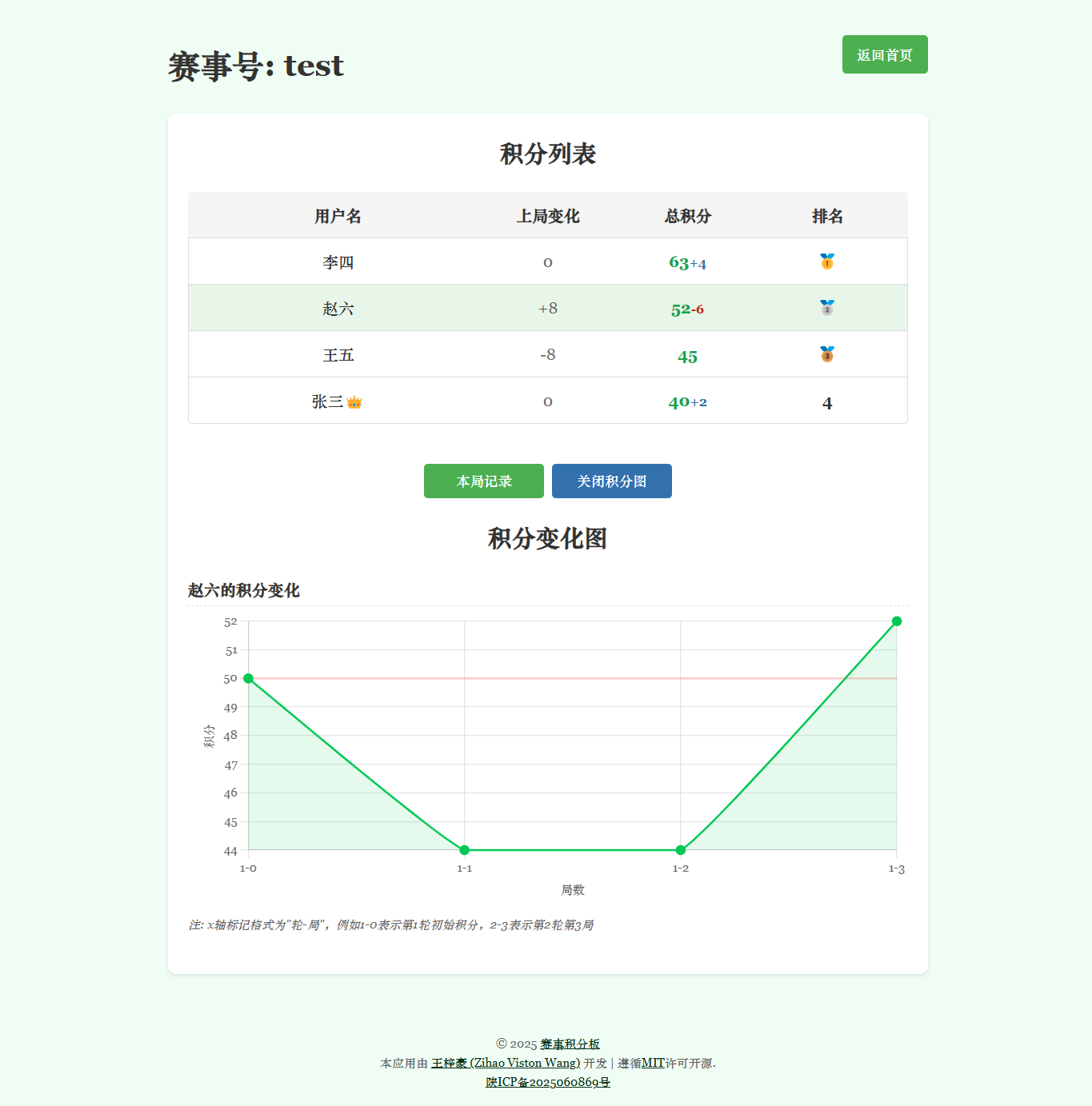

  Figure 3. Score List and Score Variation Chart

Code Repository

• This project is open-source under the MIT license.
• Click to access the GitHub repository.

Features

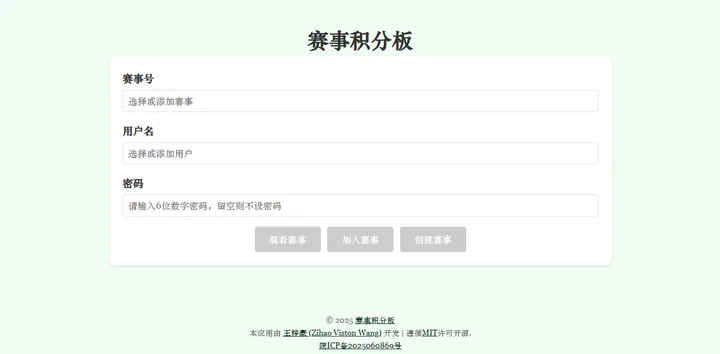

1. Home Page

   • Users can select from an existing user list or add new users.
   • Create new competitions or join existing ones.
   • Set initial scores for all users when creating a competition (default is 50 points).
   • Supports “zero-sum” and “non-zero-sum” scoring modes.
   • Optional password protection for user accounts (6-digit numeric).

2. Competition Room Page

   • Displays scores and rankings for all users in the competition.
   • Highlights the current user.
   • The host user is marked with a special identifier (👑).
   • Click on other users to transfer points.
   • Real-time automatic updates of the score list.
   • Displays score changes from the previous round.
   • View the transaction records for the current round.
   • View the score variation chart.
   • Supports negative score recording, allowing users to transfer more points than they possess.

3. Competition Management

   • The host can control the “Next Round” and “Settlement” functions.
   • Supports multi-round competition records.
   • Generates detailed settlement reports.
   • Guest mode allows non-participants to watch the competition.

Installation and Running

Prerequisites

• Python 3.6+
• Flask

Install Dependencies

pip install flask

Run the Application

Execute the following command using Python:

python app.py

After starting, access the application in your browser at http://127.0.0.1:16868.

Project Structure

/
├── app.py              # Main Flask application
├── /templates/         # HTML templates
│   ├── index.html      # Home page
│   ├── room.html       # Room page
│   └── error.html      # Error page
├── /static/            # Static resources
│   ├── /css/           # Stylesheets
│   └── /js/            # JavaScript files
│       ├── chart-manager.js   # Chart management
│       ├── logs-manager.js    # Log management
│       ├── room-manager.js    # Room management
│       ├── settlement.js      # Settlement functions
│       └── main.js            # Main script
└── /data/              # Stores competition data (JSON format)

User Instructions

1. Create or Join Competitions

   • Select an existing user or add a new user.
   • Optionally add a 6-digit numeric password for account protection.
   • Set initial scores (default is 50 points) and choose between zero-sum and non-zero-sum modes when creating a competition.
   • Click the “Create Competition,” “Join Competition,” or “Watch Competition” buttons.

2. Operations within the Competition Room

   • Point Transfer: Click on another user, enter the transfer amount, and confirm.
   • View Records: Click “Current Round Record” to see transfer details for the ongoing round.
   • Score Chart: Click “Score Variation Chart” to view score trends.
   • Next Round: The host can click “Next Round” to start a new round of competition (when available).
   • Settlement: The host can click “Settlement” to generate a report for the current phase (when available).

3. Special Features

   • Guest Mode: No registration required; allows real-time viewing of competition progress.
   • Settlement Reports: Expand to view details of historical settlement reports.
   • Host Permissions: Control over the competition process.

Security and Data

• All data is stored in JSON format within the data directory.
• Optional password protection for user accounts.
