Stata Outline

Version: 0.2.1 Author: Zihao Viston Wang

中文版本

Features

1. Smart Outline & Structural Navigation

• Multi-level Outline Recognition: Automatically detects comment lines from **# to **###### as hierarchical headers, supporting up to 6 levels.
  • Shortcuts: Ctrl/Cmd + 1-6 to quickly convert to the corresponding header level; Ctrl/Cmd + 0 to revert to a standard code line.
• Cursor Sync (Auto-Reveal): The outline view automatically highlights and navigates to the corresponding section as the cursor moves in the editor.
  • Setup: Click the “···” button in the top-right of the Outline view and check “Follow Cursor”. (Note: This is a VS Code GUI setting and cannot be configured via code).
• Multi-level Numbering: Optional display of logical numbering (e.g., 1.1, 1.2.1) within the outline (must be enabled in settings).
• Auto-Sync Numbering: When enabled, the extension automatically adds or removes numbering directly within the .do file based on the outline structure.

2. Code Execution (Stata Interaction)

• Native Support (macOS): Communicates directly with Stata without requiring additional extensions. Note: Windows is currently not supported.
• Flexible Execution Modes:
  • Global Execution: Click the ▶️ button in the editor title bar or Outline view header to run the current script.
  • Smart Section Run: When no code is selected, pressing Ctrl/Cmd + D automatically detects the current section and executes from that header down to (but not including) the next header of the same or higher level.
  • Precision Selection Run: Press Ctrl/Cmd + D to run the selected block. Supports fuzzy selection, executing complete lines even if not fully highlighted.

3. Efficient Separators & Styling

• Quick Insertion: Supports various symbols to enhance code readability.
  • Standard Separators: Use Ctrl/Cmd + Symbol to insert a divider:
    • Ctrl/Cmd + - (Dash) | Ctrl/Cmd + = (Equal) | Ctrl/Cmd + Shift + 8 (Asterisk)
  • Custom Separators:
    • Ctrl + Alt + S (Windows) | Ctrl + Cmd + S (macOS), where S stands for “Separator”.
    • After the shortcut, simply input your desired character to generate the line.
• Intelligent Wrap Mode:
  • Blank Line Insertion: Generates a full-width divider (length adjustable in settings).
  • Non-blank Line Insertion: Pressing the shortcut once inserts a divider above the line; pressing it again inserts one below, creating a “wrapped” header effect.
  • Header Decoration: Select header text and press the shortcut to generate a title with balanced decorative symbols (e.g., **# === Title ===). These decorations do not interfere with outline recognition.

4. Enhanced Commenting

• Toggle Comments: Quickly toggle line comments using Ctrl/Cmd + /.
• Optional Styles: Defaults to //, with support for switching to other valid Stata comment delimiters in settings.

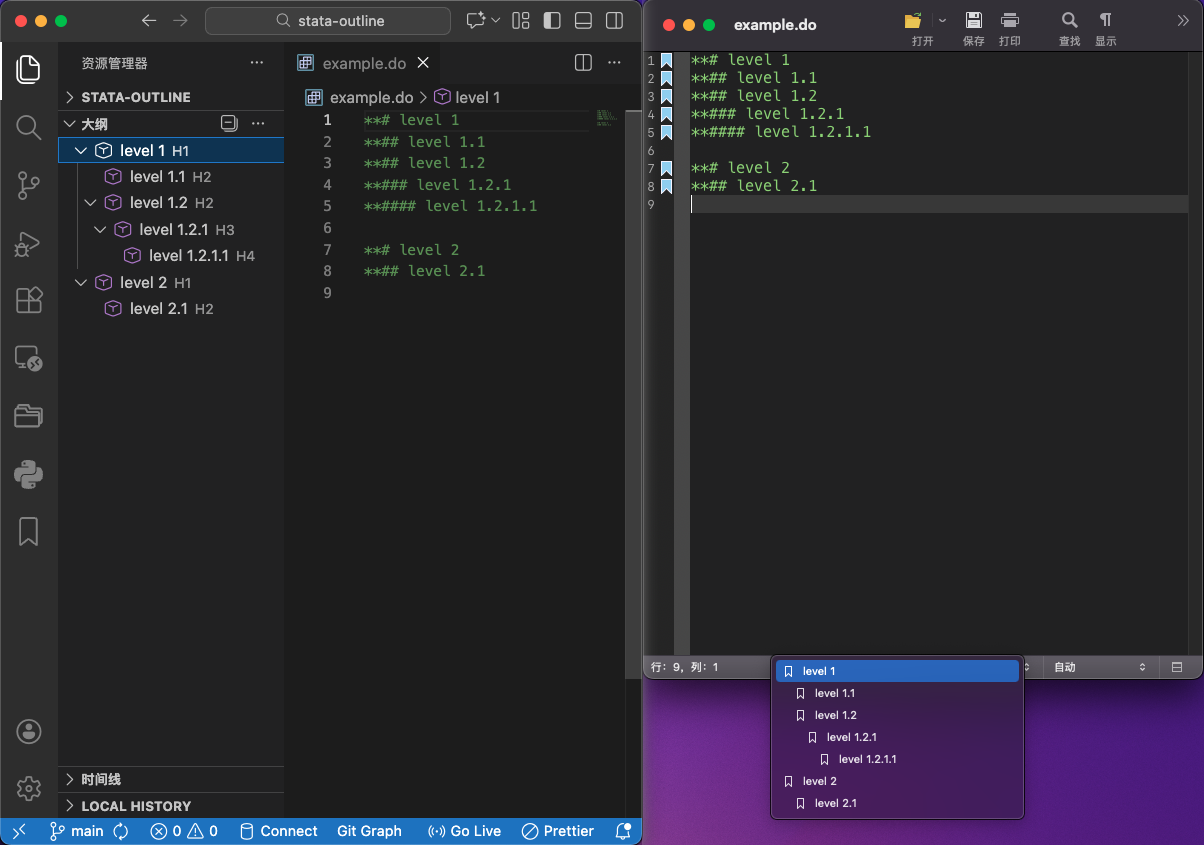

Hierarchical outline view in Stata .do files (Left: VS Code, Right: Stata)

Installation

Extension Marketplace

1. Search for “Stata Outline” in VS Code extensions and install.
2. Open any .do file and navigate to Outline panel (Explorer → Outline) to view hierarchical structure.

Manual Installation

1. Download stata-outline-x.x.x.vsix from releases page.
2. In VS Code → Extensions panel → ... → Install from VSIX....
3. Select the downloaded file to complete installation.
4. Open any .do file and view Outline panel.

Configuration

Search for “Stata Outline” in VS Code settings and configure:

1. Display Multi-level Numbering (stata-outline.showNumbering)

   • true: Outline displays 1.1, 1.2.1 style numbering.
   • false (default): Displays original headings.

2. Auto-update File Content (stata-outline.updateFileContent)

   • true: Automatically adds/removes numbering in .do files (requires numbering display).
   • false (default): Only displays numbering in outline, doesn’t modify file.

3. Show Run Button (macOS) (stata-outline.showRunButton)

   • true: Shows play button in editor title bar and Outline view.
   • false (default): Hides button (macOS-only feature).

4. Stata Version (macOS) (stata-outline.stataVersion)

   • Select between StataMP, StataIC, StataSE when running on macOS.

5. Active Stata Window After Running Code (macOS) (stata-outline.activateStataWindow)

   • true (default): Brings Stata window to the foreground after code execution.
   • false: Does not change focus.

6. Comment Style (stata-outline.commentStyle)

   • // (default): Line comments with double slash.
   • * : Stata single-line comments.
   • /* ... */: Block-style comments.

7. Separator Length (stata-outline.separatorLength)

   • Numeric length used to size divider lines (including prefixes). Larger values produce longer separators.

Note: Changes take effect after reopening .do files. When updateFileContent is disabled, existing numbering in .do files will be automatically removed.

Usage Example

**# Data Processing
**## Cleaning
**### Remove duplicates
**# Model Estimation
***## Regression Analysis

• With numbering (showNumbering: true):Outline shows 1. Data Processing, 1.1 Cleaning, 1.1.1 Remove duplicates, etc.
• Without numbering (showNumbering: false): Outline shows original headings Data Processing, Cleaning, etc.
